Type: AB5702

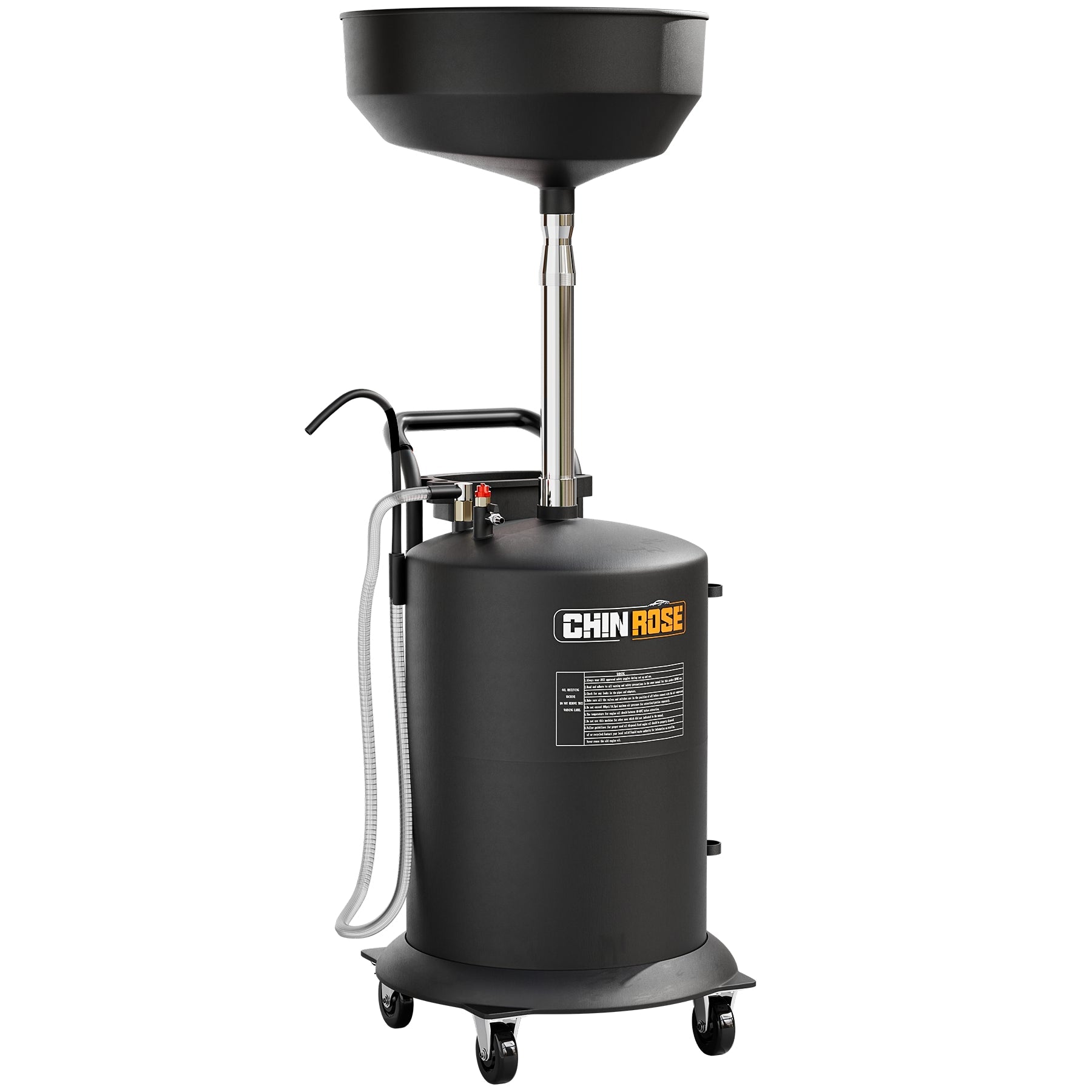

70L Waste Oil Drain Tank (18.5 Gallon)

$289,99 USD
$313,99 USD
$289,99 USD
-8%

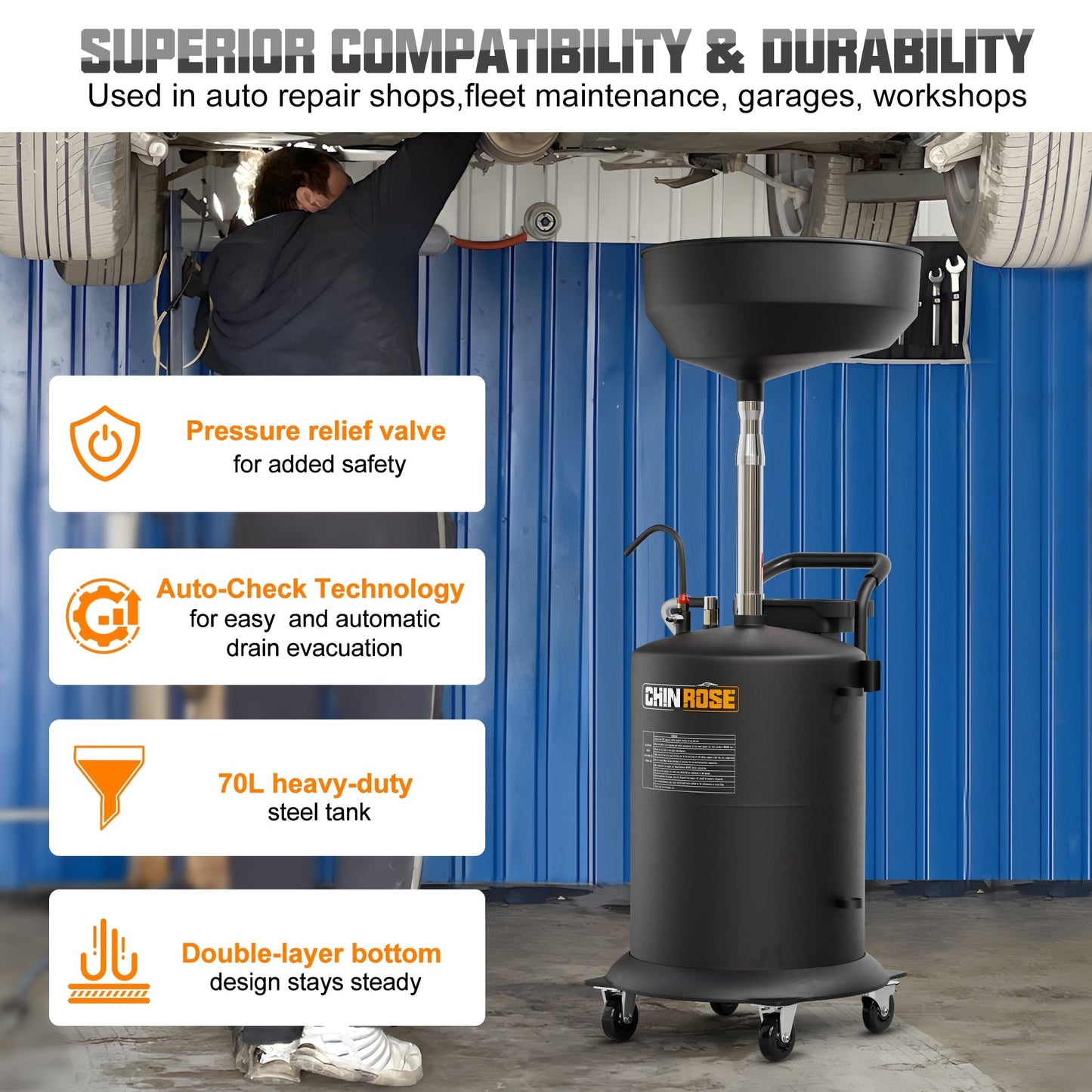

70L Waste Oil Drain Tank Large 18.5-gallon steel tank with an adjustable 16.1-inch funnel. Features pneumatic evacuation, 360° swivel casters, and a rustproof powder-coated finish.

Free US Shipping

30 Day No-Hassle Returns

12-Month Warranty

Features

  • Convenient Oil Collection: Effortlessly collect motor oil, transmission fluid, and coolant with this waste oil container, designed for lift-mounted vehicles. The 70L (18.5-gallon) capacity allows servicing of 12–20 vehicles before needing to empty, and the built-in fluid evacuation system ensures quick and hassle-free disposal
  • Adjustable Height & Mobility: Easily adjust the funnel height between 51.5 to 59 inches with the quick-adjustment valve, accommodating various vehicle types. Equipped with 360° swivel casters (two with brakes), this rolling oil drain pan moves effortlessly across your workshop, ensuring convenience and efficiency
  • Large Funnel Design: The 16.1-inch wide funnel is perfect for capturing waste oil without spills, making oil changes cleaner and more efficient. Its large funnel capacity of 20L (5.28 gallons) further enhances convenience during use
  • Durable & User-Friendly: Built with premium steel and a powder-coated surface, this oil drain tank is rustproof and built to last. The ergonomic handle ensures comfortable use, while the safety valve releases excess pressure for secure operation

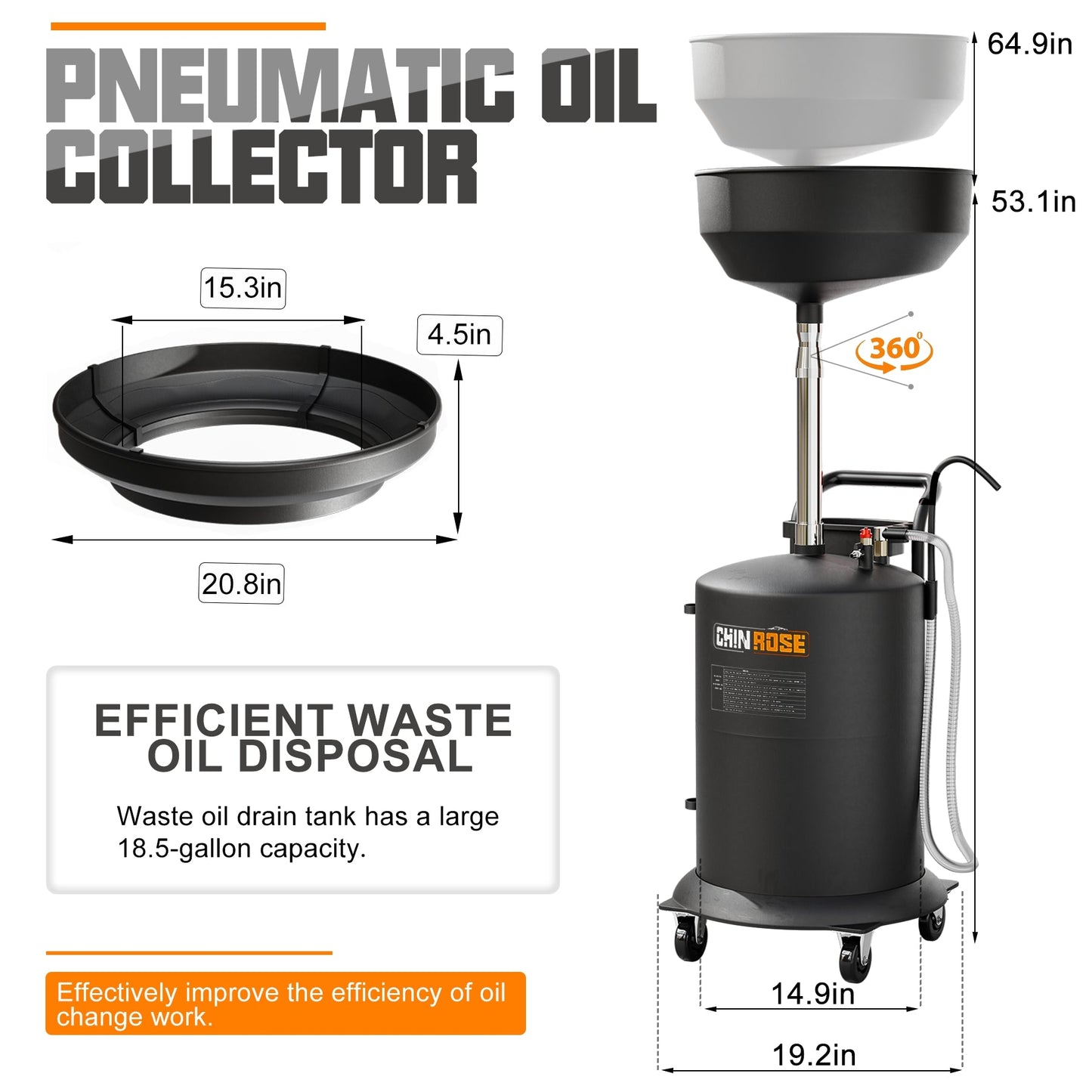

Specification

  • Packages: 96.52 × 53.34 × 53.34 cm, 27kg (approximately)
  • Main Tank Capacity: 70 Liters (18.5 Gallons)
  • Funnel Diameter / Capacity: 16.1 Inches / 20 Liters (5.28 Gallons)
  • Height Range: 51.5" to 59" (Adjustable)
  • Mobility: 3.5" Swivel Casters (2 Locking)
  • Discharge Pressure: 0.6–0.8 Bar (8.7–11.6 PSI)
  • Air Supply Requirement: 6–8 Bar (87–116 PSI)
  • Operating Temperature: 40–60°C (Optimized for warm oil)
Waste Oil Drain Tank 70L (18.5 Gallon) - Chinrose
70L Waste Oil Drain Tank (18.5 Gallon)

$289,99

Multi-Function Pneumatic Oil Drain Machine

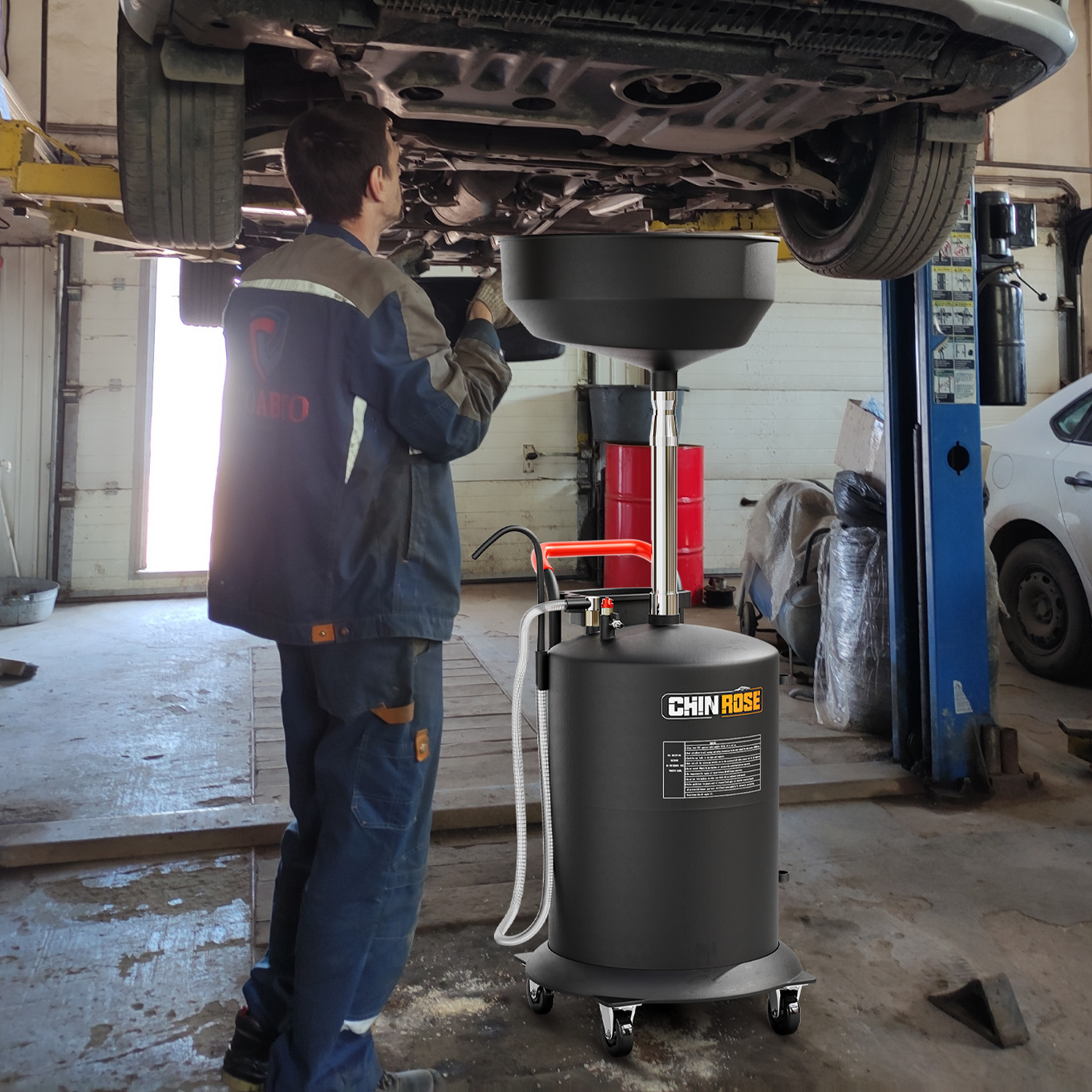

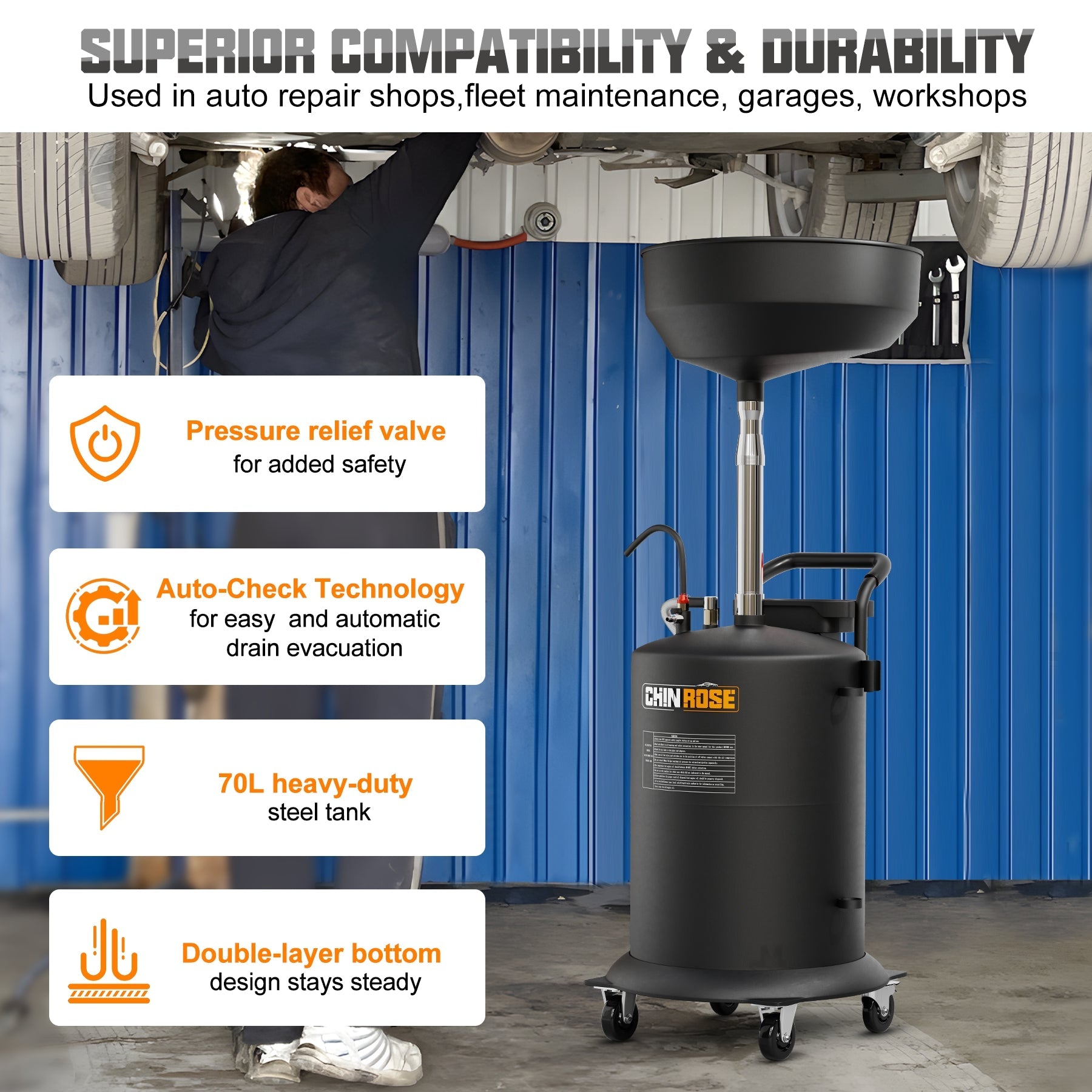

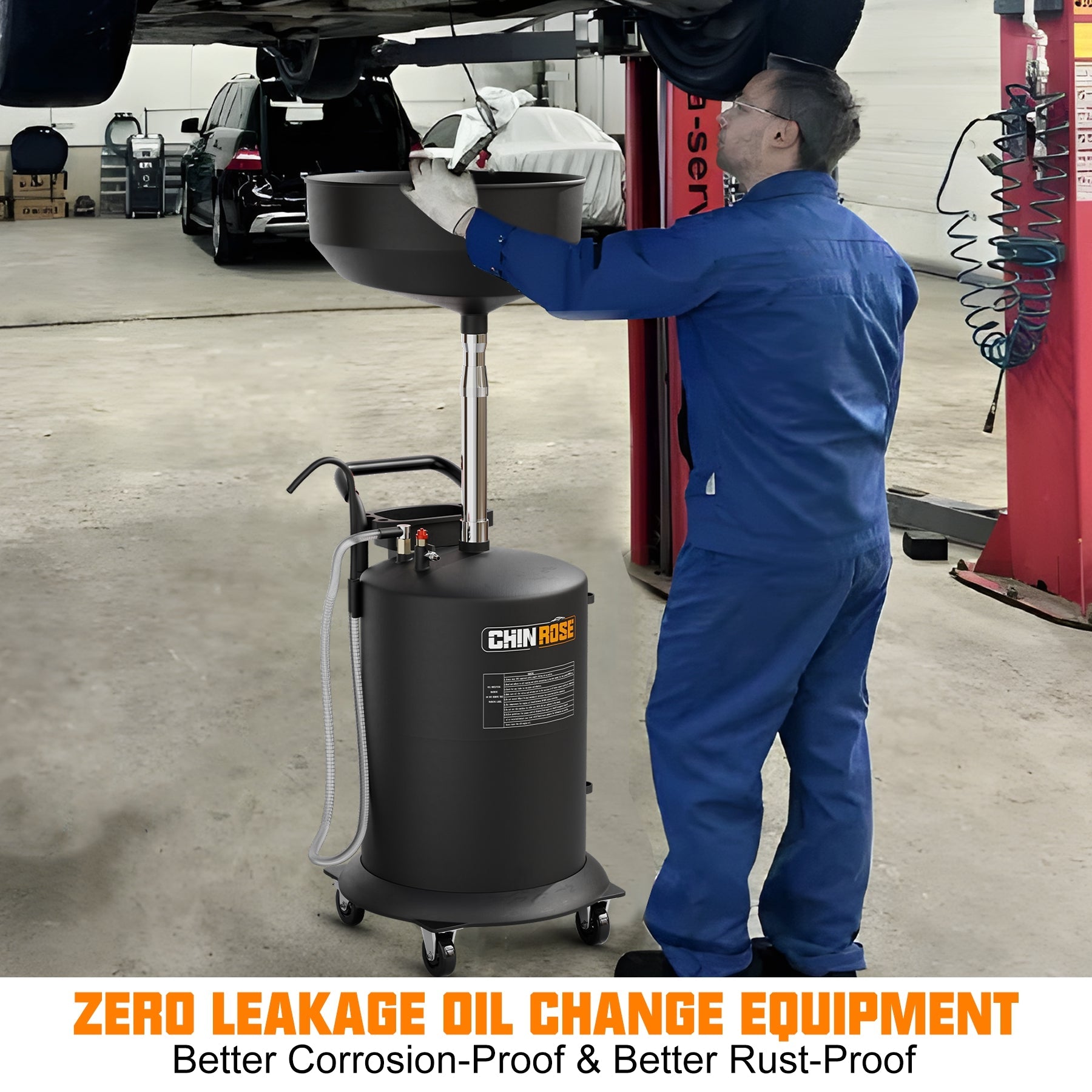

Suitable for auto repair shops, fleet maintenance, garages and workshops. 100% not cause waste oil leakage

70L Large capacity

Easy installation

Move smoothly

Anti-rust

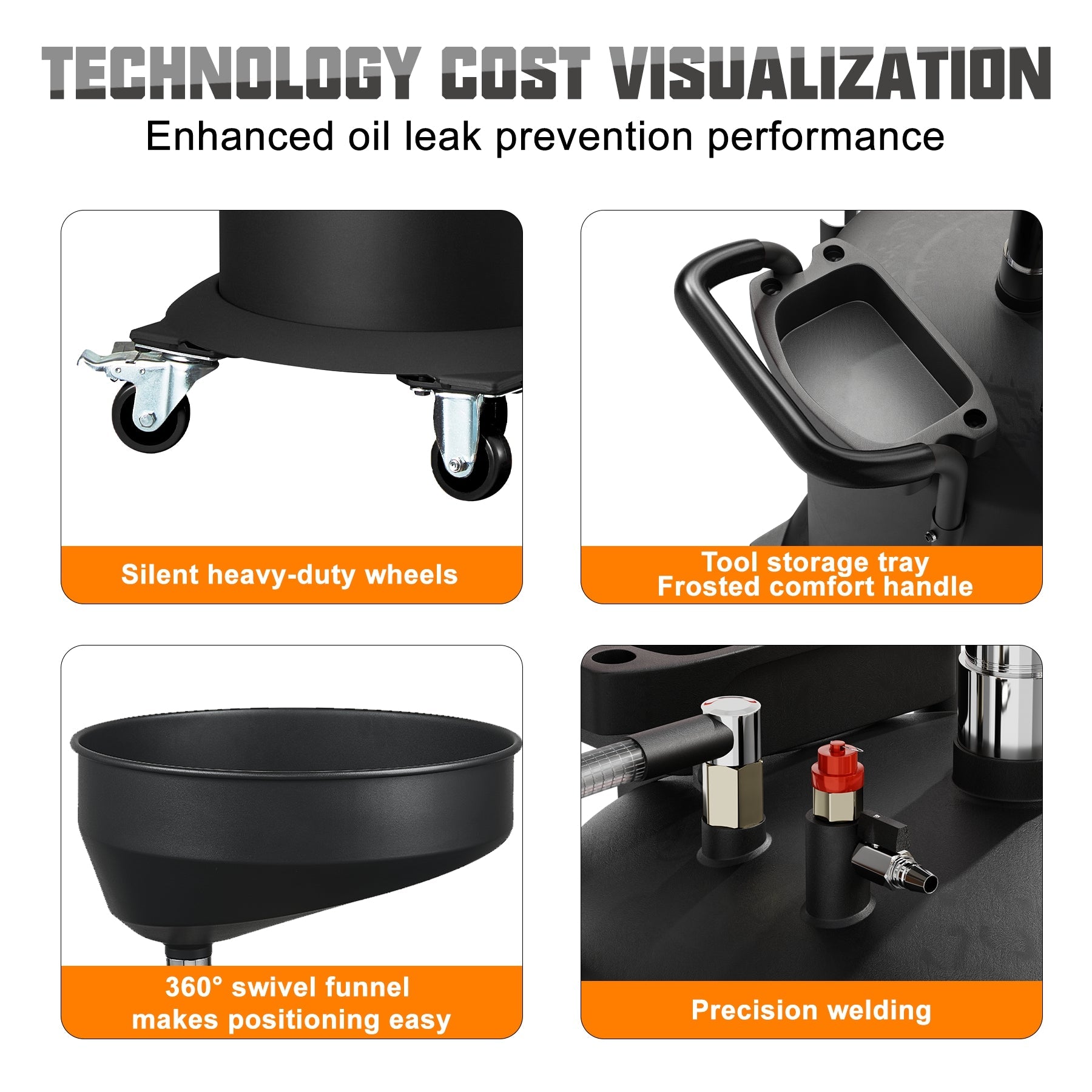

Feature Component

360° swivel funnel

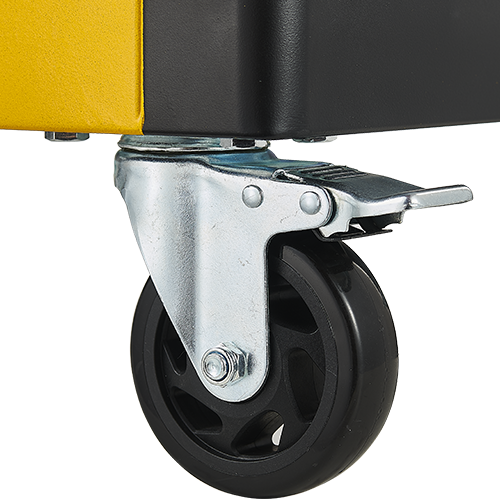

Thickened universal wheel

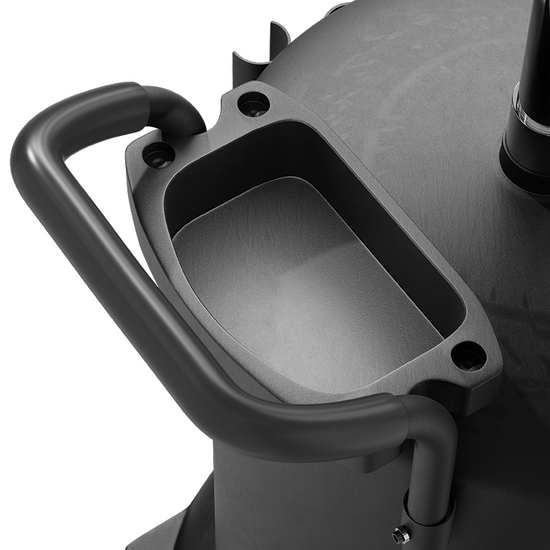

Tool storage box

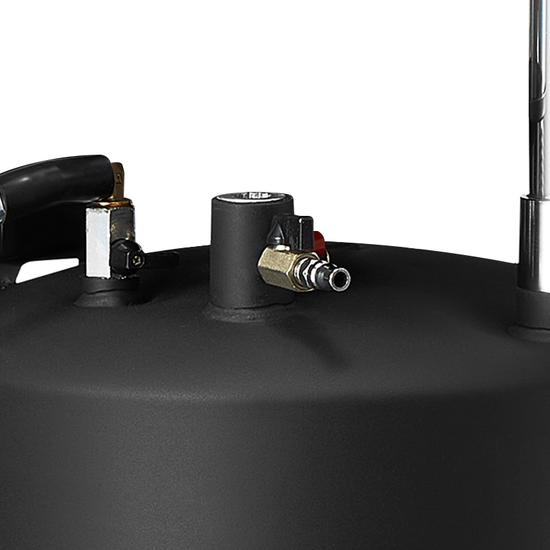

Thickened air intake

Double-layer bottom design

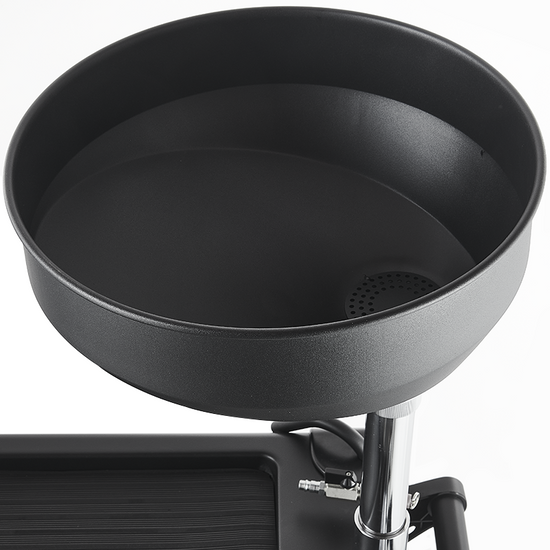

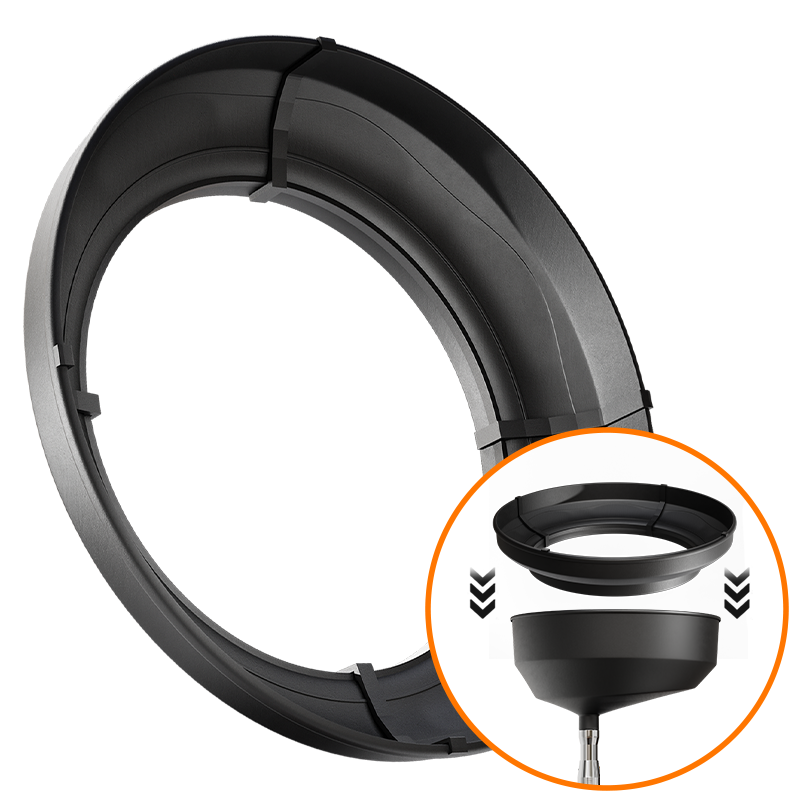

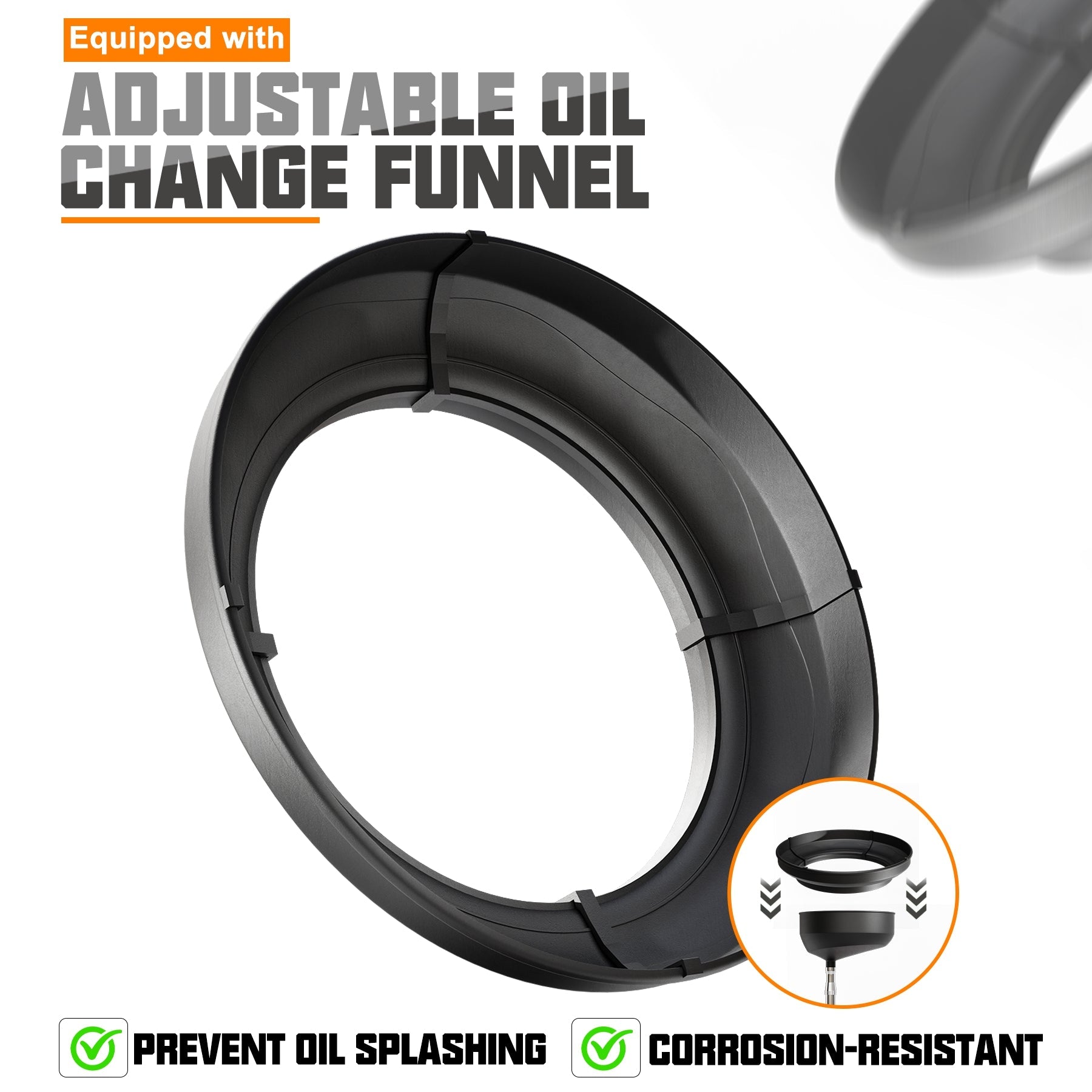

Adjustable Oil Change Funnel

  • Prevent oil splashing
  • Corrosion-resistant

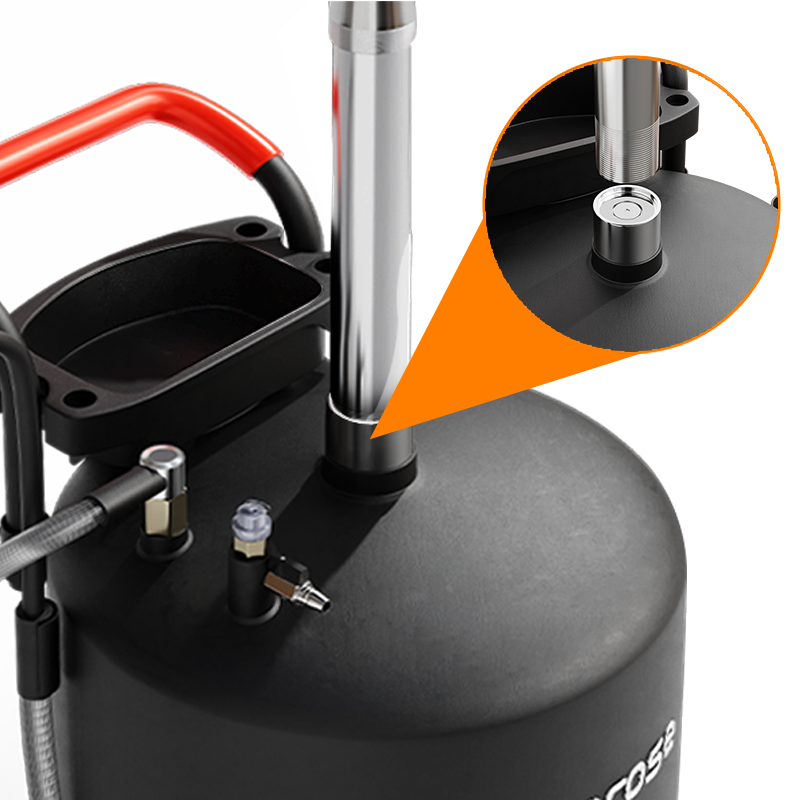

Auto-Check Technology

No oil leakage
Automatically pop up and close to prevent accidental when discharge of waste oil.

Large Capacity Oil Pan

Corrosion-resistant
No problems such as waste oil spillage during use, Waste oil flows precisely into the container.

PARAMETERS

Name Details
Air Supply Pressure 0.7-1.0MPA
Oil Discharge Pressure 0.18-0.2MPA
Air Consumption 150L/Min
Vacuum Level 0-65cmHg
Tank Capacity 70L(18.5gal)
Oil Catch Pan Capacity 10L
Packaging Dimensions 53x53x95cm

How To Discharge The Oil From Tank?

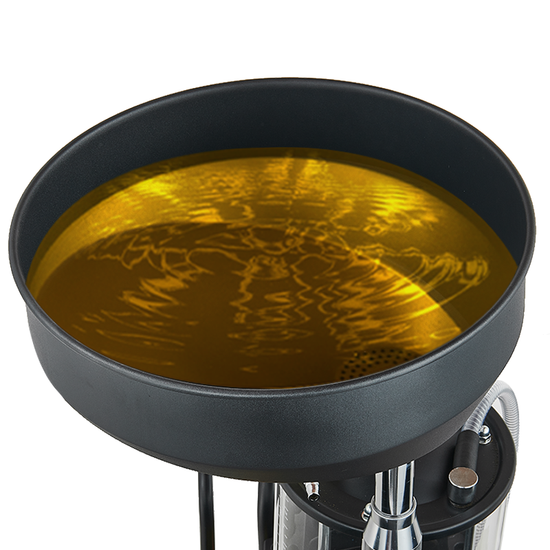

1. Oil Pan

Rising height, holds 20 liters of oil.

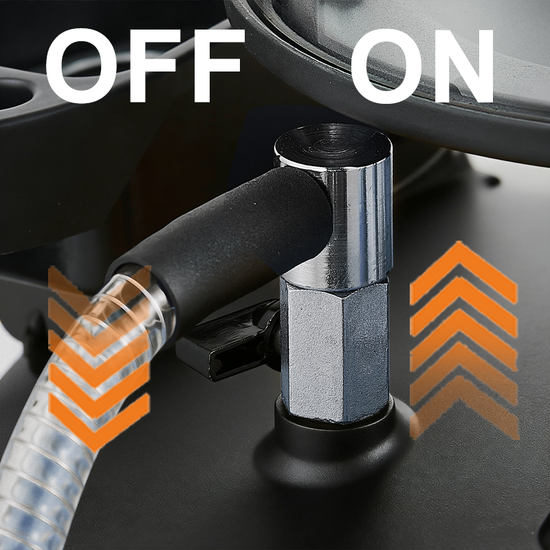

2. Air Inlet

Connect the air source to the air inlet and establish apositive pressure state.

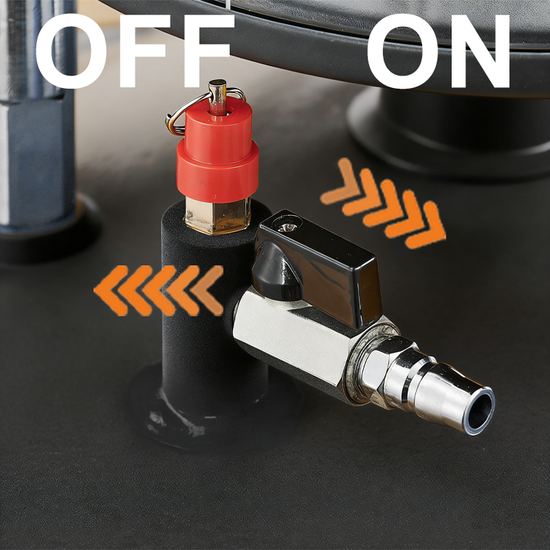

3. Oil Discharge Valve

Open the oil drian hose valve.

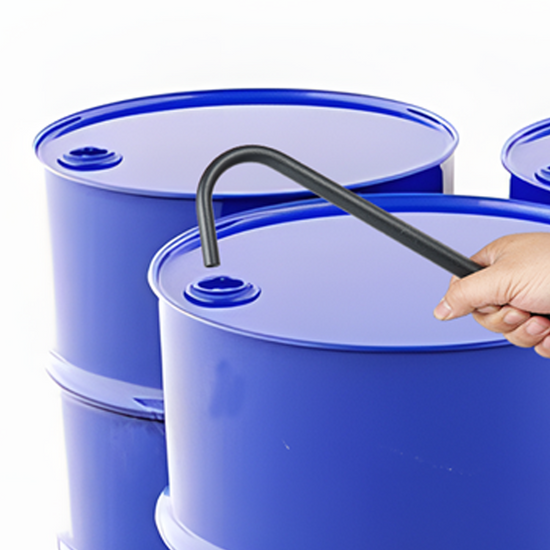

4. Oil Discharge Hose

When the hose valve is opened, the oil will be drained automatically.
